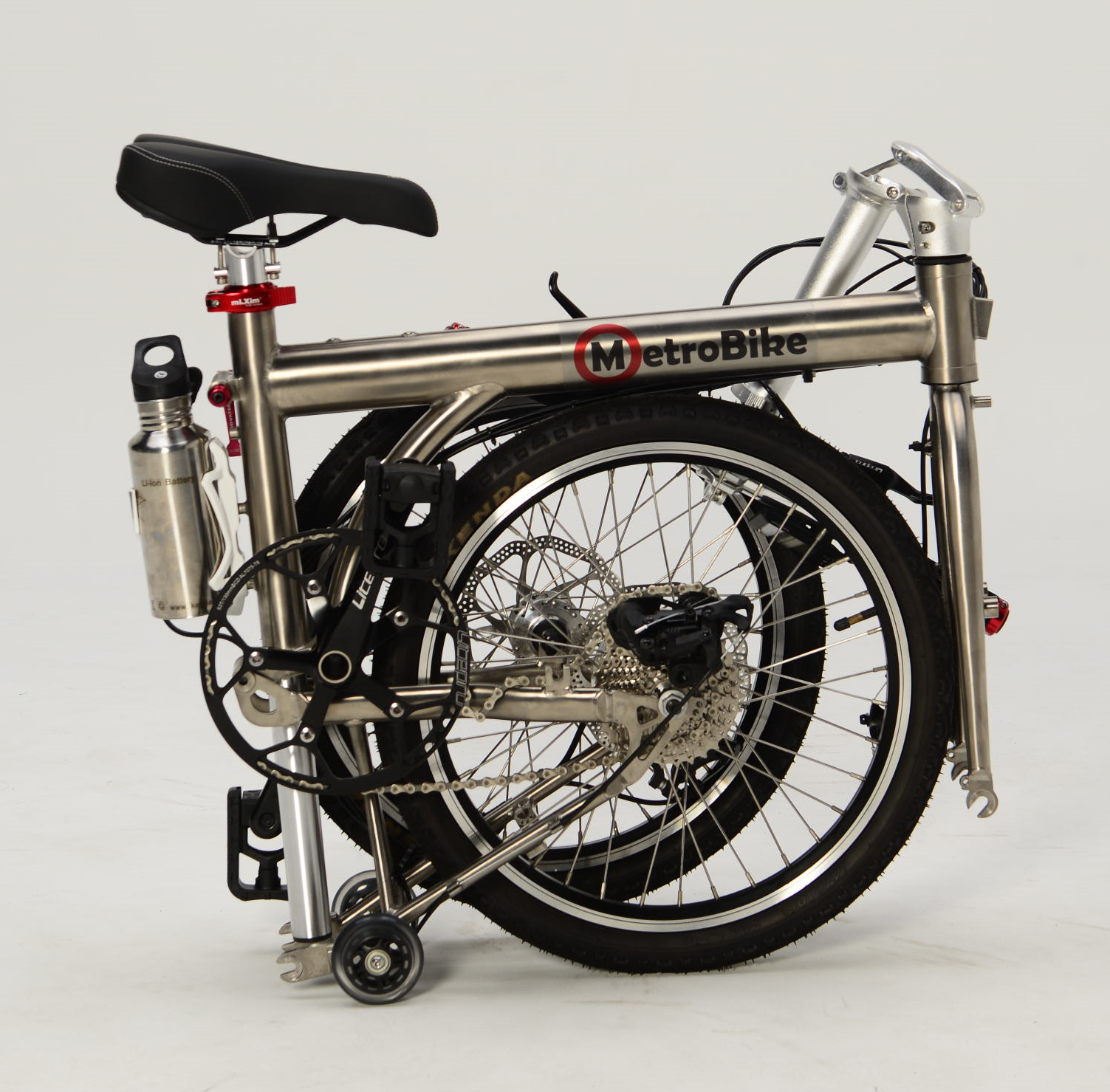

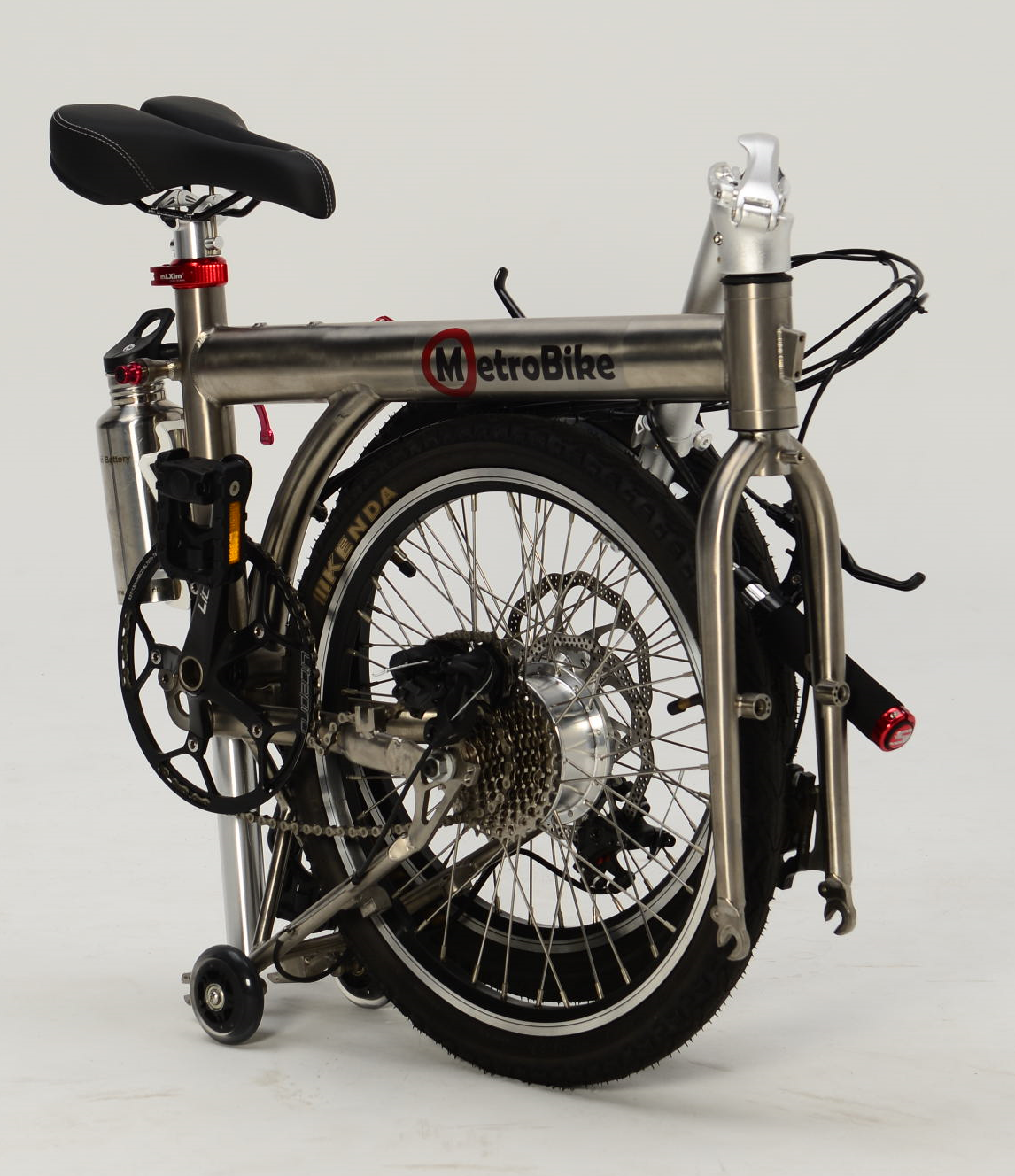

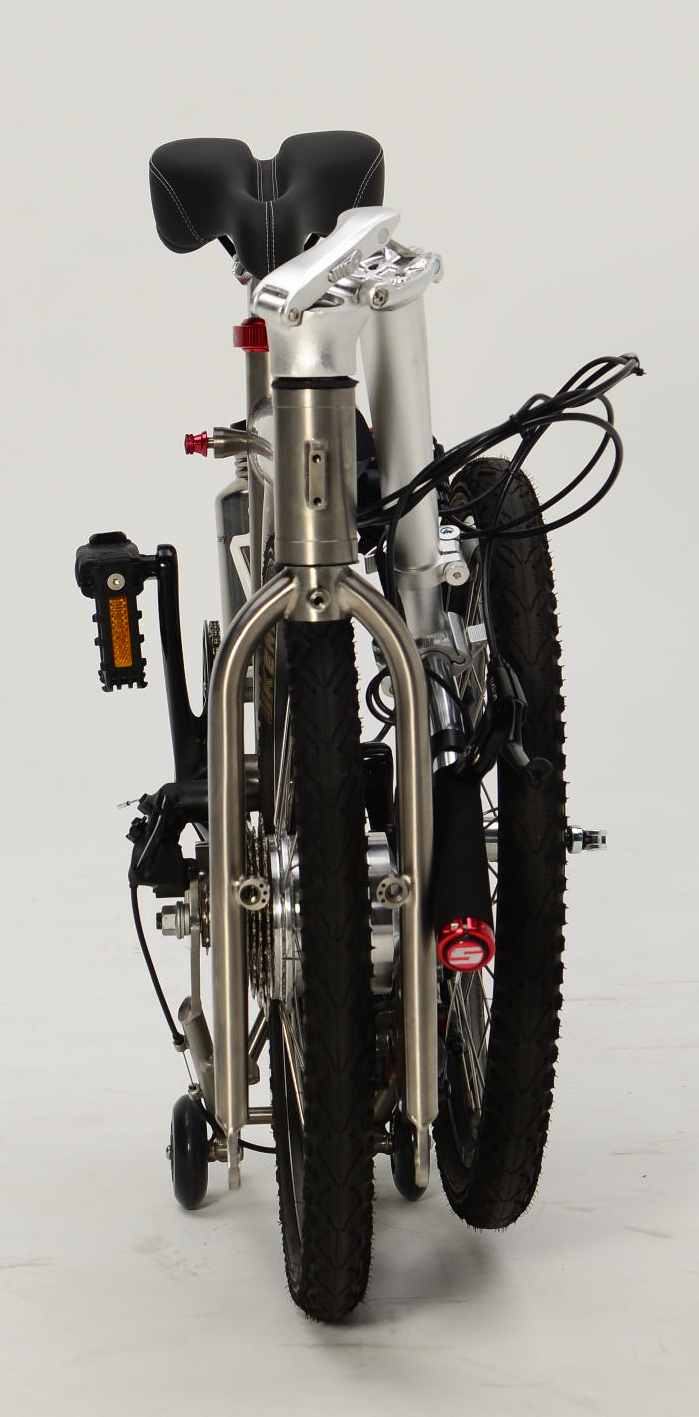

Folded Dimensions

74cm x 74cm x 30cm

‍

Weight without battery

13.2 kg / 29 lb

‍

Weight of battery

1.8 kg / 4 lb

‍

Maximum Recommended Rider Weight

100 kg

‍

Rider Height

160cm - 195cm / 5'2 - 6'2

‍

Road Legal

Worldwide

‍

Warranty

5 Years on frame, 1 year on parts

‍

Motor
Rear Hub Motor 250W integrated with PAS and controller

‍

Nominal/Peak Power

250W/500W

‍

Pedal Assist Top Speed

20 mph (can be modified via computer to comply with local regulations)

‍

Standard/MAX Battery Type

Lithium-Ion Panasonic Cells

‍

Standard/MAX Battery Specs

33V 10.5Ah 346Wh

‍

Standard/MAX Range

More than 45 mi. at average pace

‍

Standard/MAX Charge Time

4.5hrs/5.5hrs

‍

Display

Backlit LED with controls

‍

Pedal Assist

5 Levels

‍

Charger

Input: AC 110-240V/50-60Hz; Output: 37.8V, 3A

Frame

Titanium Alloy 3Al-2.5V Foldable

‍

Fork

Titanium Alloy 3Al-2.5V

‍

Seatpost

Litepro CNC Aluminum Alloy 33.9mm x 600mm

‍

Seatpost Clamp

40.8mm seatpost clamp for 33.9mm seatpost

‍

Stem

Aluminum Alloy Adjustable Foldable

‍

Saddle

Saddle w/ foam padding, pressure-release channel and stainless-steel rails

‍

Handlebar

Aluminum Alloy 25.4mm x 540mm Anodized Silver

‍

Handlebar Grips

Litepro Sponge Grip Ultralight

‍

Headset

LITEPRO 44mm Aluminum CNC Integrated Headset w/ Internal Sealed Bearings

‍

Derailleur

9 Speed Shimano Alivio Rear Derailleur

‍

Crankset

Litepro 170mm square taper silver cranks, w/ 53T red chainring and integrated guard

‍

Cassette

9-speed 11-28T

‍

Shifter

9 Speed Shimano Alivio Trigger Shifter w/ Gear Display

‍

Bottom bracket

BSA 68mm x 120mm square taper spindle with sealed cartridge bearings

‍

Chain

116L silver 10 Speed chain

‍

Pedals

Foldable Pedals 9/16” Spindle

‍

Brakes

Tektro Aries  Aluminum Alloy Mechanical Disk Brake Calipers with 160mm Rotors

‍

Levers

Ergonomic 2 Finger Access Aluminum Alloy Brake Levers

‍

Front Wheel

20"*1.75 Schwalbe Marathon Plus tire, 100mm disc brake hub, QR skewer, 28H rim

‍

Rear Wheel

20"*1.75 Schwalbe Marathon Plus tire, rear hub motor, 32H rim

‍
