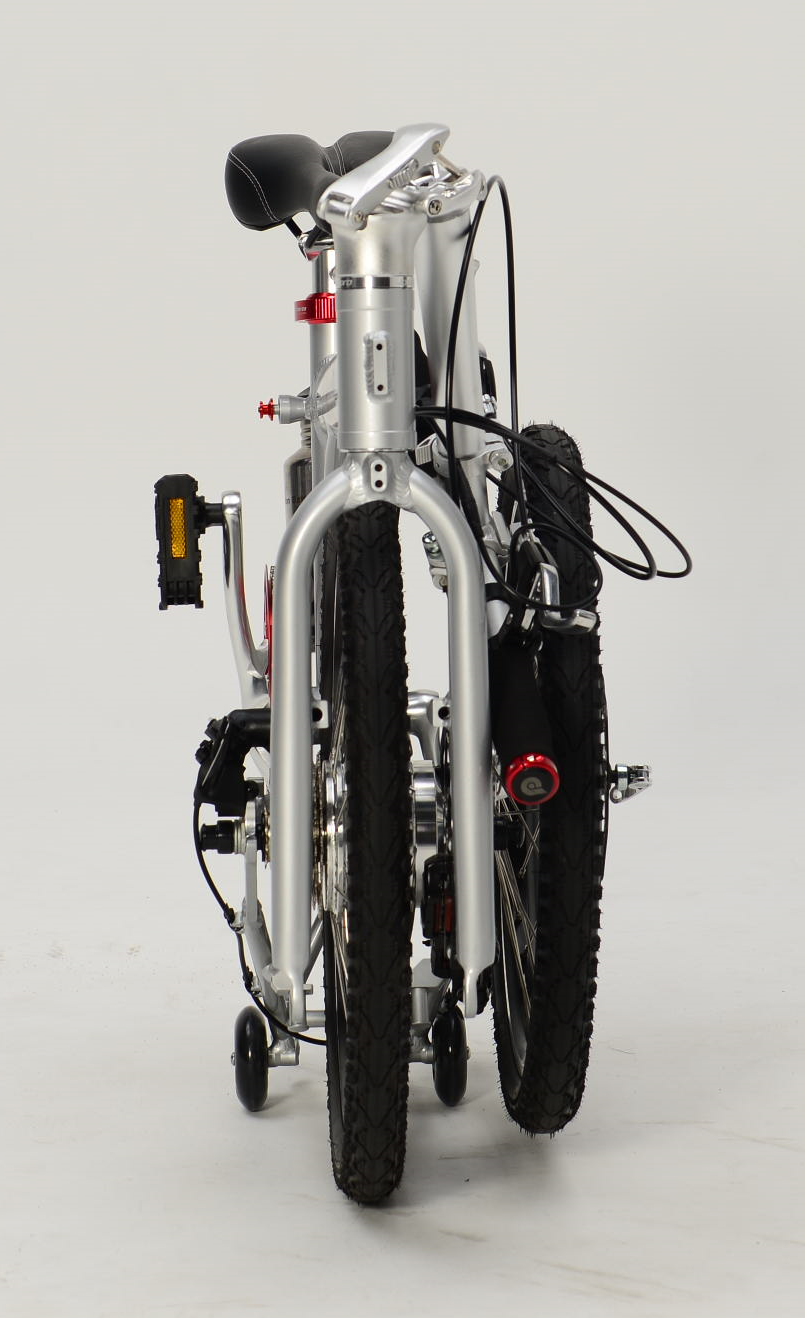

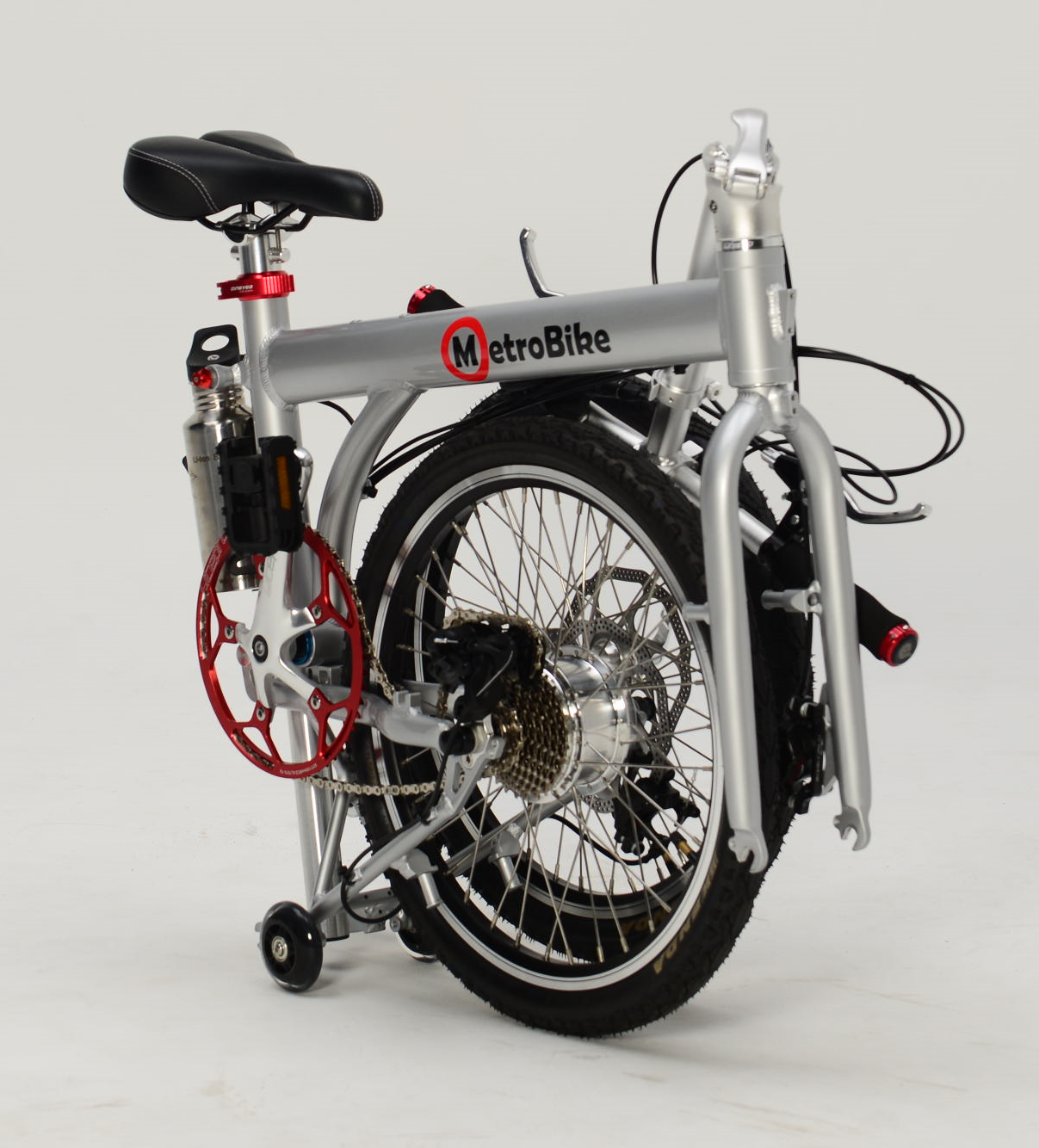

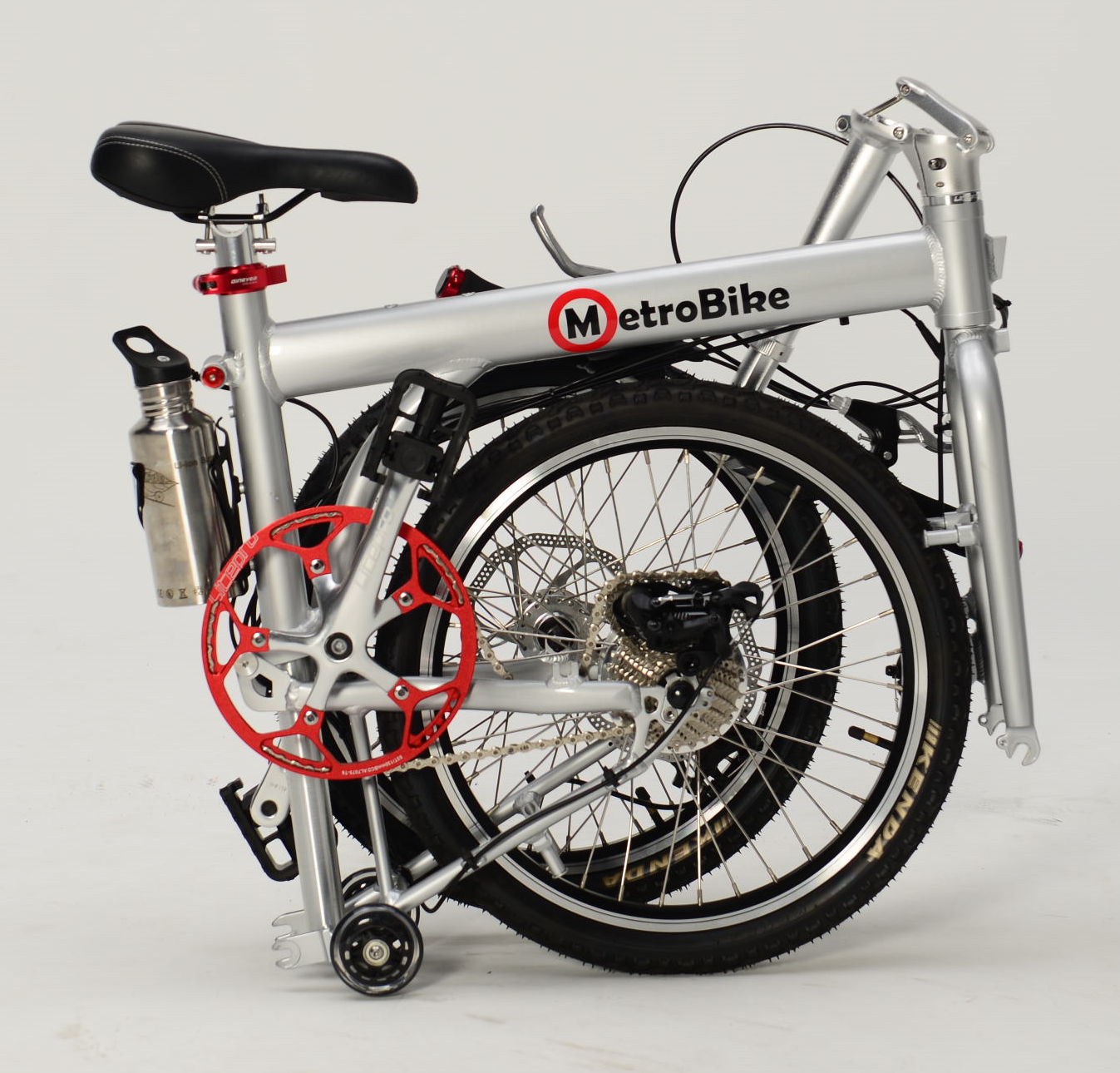

Folded Dimensions

74cm x 74cm x 30cm

‍

Weight without battery

13.7 kg / 30.2 lb

‍

Weight of battery

1.8 kg / 4 lb

‍

Maximum Recommended Rider Weight

100 kg

‍

Rider Height

160cm - 195cm / 5'2 - 6'2

‍

Road Legal

Worldwide

‍

Warranty

2 Years on frame, 1 year on parts

‍

Motor‍

Rear Hub Motor 250W integrated with PAS and controller

‍

Nominal/Peak Power

250W / 500W

‍

Pedal Assist Top Speed

20 mph (can be modified via computer to comply with local regulations)

‍

Standard/MAX Battery Type

Lithium-Ion Panasonic Cells

‍

Standard/MAX Battery Specs

33V 10.5Ah 346Wh

‍

Standard/MAX Range

More than 45 mi. at average pace

‍

Standard/MAX Charge Time

4.5hrs /5.5hrs

‍

Display

Backlit LED with controls

‍

Pedal Assist

5 Levels

‍

Charger

Input: AC 110-240V/50-60Hz; Output: 37.8V, 3A

‍

Frame

Aluminum Alloy 6061 Foldable

‍

Fork

Aluminum Alloy 6061

‍

Seatpost

Litepro CNC Aluminum Alloy 33.9mm x 600mm

‍

Seatpost Clamp

40.8mm seatpost clamp for 33.9mm seatpost

‍

Stem

Aluminum Alloy Adjustable Foldable

‍

Saddle

Saddle w/ foam padding, pressure-release channel and stainless-steel rails

‍

Handlebar

Aluminum Alloy 25.4mm x 540mm Anodized Silver

‍

Handlebar Grips

Litepro Sponge Grip Ultralight

‍

Headset

LITEPRO 44mm Aluminum CNC Integrated Headset w/ Internal Sealed Bearings

‍

Derailleur

10 Speed Shimano Compatible L-TWOO A7 Rear Derailleur

‍

Crankset

Litepro 170mm square taper silver cranks, w/ 53T red chainring and integrated guard

‍

Cassette

10-speed 11-28T

‍

Shifter

10 Speed Shimano Compatible L-TWOO A7 Trigger Shifter w/ Gear Display

‍

Bottom bracket

BSA 68mm x 120mm square taper spindle with sealed cartridge bearings

‍

Chain

116L silver 10 Speed chain

‍

Pedals

Foldable Pedals 9/16” Spindle

‍

Brakes

Mechanical  Aluminum Alloy Disk Brake Calipers with 160mm Rotors

‍

Levers

Ergonomic 2 Finger Access Aluminum Alloy Brake Levers

‍

Front Wheel

20"*1.75" Kenda tire, 100mm disc brake hub, QR skewer, 28H rim

‍

Rear Wheel

20"*1.75" Kenda tire, rear hub motor, 36H rim

‍
